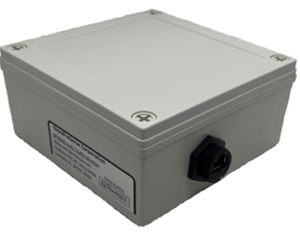

OPS7242 Radar Sensor with All-weather Enclosure

$385.00

OPS7242-A Short Range Radar Sensor

The OPS7242-A is a simple radar sensor solution in an all-weather IP67 enclosure.  It can be quickly mounted outdoors to report motion, speed, and direction for objects in its field of view.  A simple API enables flexible control for different applications.  The OPS7242 carries full FCC/IC modular certification.

Product Brief

Mechanical Outline Drawing

Only 1 left in stock

SKU: OPS7242-A-US-IP Category: Tags: , , ,
  • Description
  • Additional information

Description

OPS7242-A Short Range Radar Sensor

The OPS7242-A is Doppler radar sensor providing motion detection, speed, and direction reporting in an all-weather IP67 enclosure.  Motion, speed, and direction information is provided over a USB interface.  A simple API provides control over the reporting format, sample rate, and module power levels.  The sensor carries full FCC/IC regulatory approval and comes with a USB cable.

Features

  • 1-25m (3-82’) detection range
  • Speed reporting 138mph (222kmh) or higher
  • Speed accurate to within 1mph (1.6kmh)
  • Direction reporting (Inbound/Outbound)
  • Wide 76° beam width (-3 dBm)
  • USB interface
  • Simple API control
  • Full FCC/IC modular certification
  • 1.4W Active power, 0.6W Idle power
  • Small form factor 80 x 130 x 187 mm (3.2 x 5.1 x 3.4 in), 300g (11 oz)

Applications

  • Security Detection
  • Traffic Monitoring
  • Object Counting

Additional information

Weight 2 lbs
Dimensions 14 × 6 × 4 in
